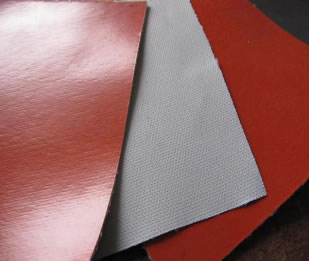

Silicon Adhesive Tape

The silicone rubber coated fiberglass fabrics are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.

Characteristics

1.High temperature resistance,. It can continuously work under -70℃ to 230℃.

2.Good stability. It resist ozone, oxygen, sunlight and aging so that its using life is up to 10 years.

3.Excellent electric insulation. Dielectric constant is 3～3.2 and breaking down voltage is between 20～50KV/mm.

Application

1.Electric insulation: Silicon rubber coated fiberglass cloth have high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.

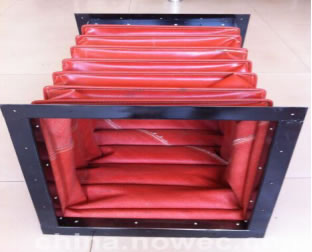

2.Non-metallic compensator: used as pipeline flexible coupling, it helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.

3.Anti-corrosion sector: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.

4.Others: Apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.

Specification

Material Model Thickness(mm) Tensile strength (N/50mm) Bursting strength
(Mpa) 		Combustible Width(mm)
Glass fiber
and high temperature
silicone rubber 		5013 0.13 1500/1200 2.0 ≤25% 0-1500
5025 0.25 1800/1500 2.1 ≤25% 0-1500
5040 0.40 2000/1600 2.2 ≤25% 0-1500
5050 0.50 2200/1800 2.3 ≤25% 0-1500
5060 0.60 2400/2200 2.4 ≤25% 0-1500
5070 0.70 2500/2300 2.4 ≤25% 0-1500
5080 0.80 2600/2400 2.5 ≤25% 0-1500
5090 0.90 2800/2600 2.5 ≤25% 0-1500
5100 1.00 3000/2800 2.6 ≤25% 0-1500
5120 1.20 3400/3000 2.5 ≤25% 0-1500
5150 1.50 3700/3300 2.3 ≤25% 0-1500
5200 2.00 4200/3800 2.2 ≤25% 0-1500
