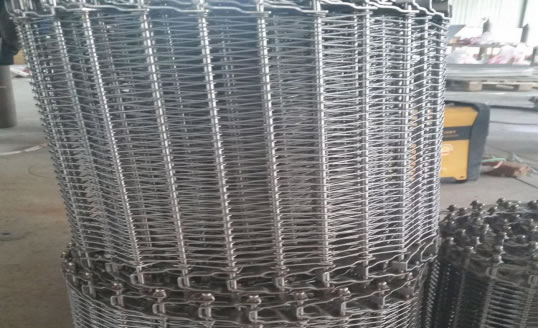

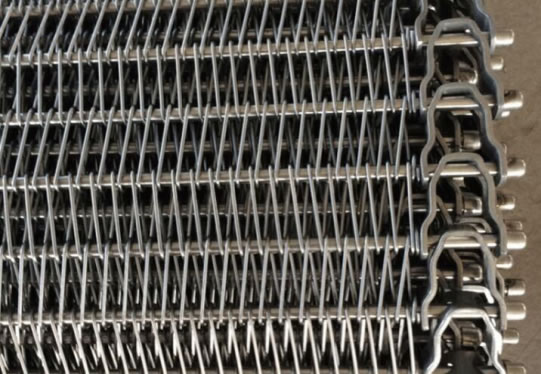

Flexible Rod Conveyor Belt

Flexible rod conveyor belt is composed of cross rods and spiral mesh. Flexible rod conveyor belts can also be supplied with a link in the centre of the belt width to decrease its turning radii, as well as side guards to prevent product spillage.

It is commonly used on cooling or freezing conveyors and spiral towers in the food processing and baking industries.


Mesh types

There is two following types

Balanced weave mesh Same direction mesh

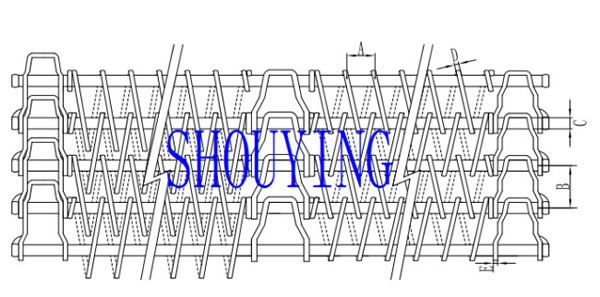

Belt specification details

A Spiral wire pitch
B Crimp wire pitch
C Crimp wire diameter
D Spiral wire diameter
E Flat wire thickness

Materials available

Stainless steel 304
Stainless steel 316
Stainless steel 316L
Other materials demanded by the clients.
